How to Protect Your Wheel Loader’s Hydraulic Cylinders from Damage

Hydraulic cylinders are the muscles behind every move your wheel loader makes. They lift the arms, curl the bucket, and deliver the force that turns raw horsepower into productive work. When they run smoothly, the machine feels strong and responsive. When they begin to fail, you see it right away in slow movements, lost lifting power, and oil weeping down the rods. Because these cylinders sit out in the open, exposed to mud, rock, dust, and weather, they take a beating that most other parts of the machine never feel. Protecting them from impact, contamination, and abuse is one of the smartest investments you can make in your equipment. A neglected cylinder can lead to blown seals, scored rods, and full rebuilds that pull the loader off the job for days at a time. The encouraging news is that protecting these vital components does not require special tools or deep technical training. It comes down to a handful of consistent habits worked into your daily routine. The five practices below cover everything from quick visual checks to disciplined operating technique, giving you a clear, practical framework to keep your cylinders healthy and your loader earning its keep season after season.

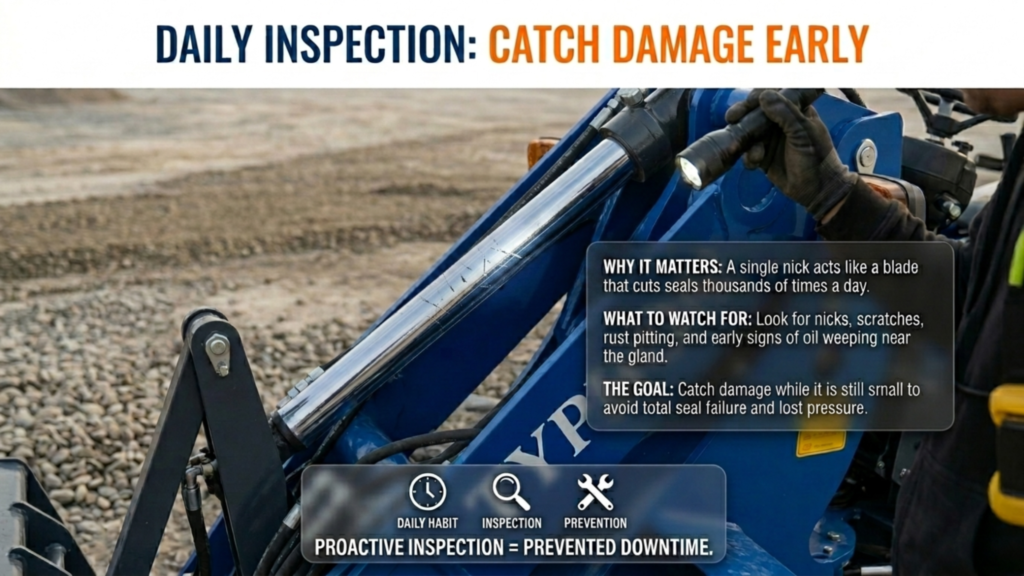

Check for Dents and Scratches Daily

A few minutes of inspection each morning can save you from a major repair later. Before you start work, walk around your wheel loader and look closely at the shiny metal rods of each hydraulic cylinder. These polished chrome surfaces are precision components, and even small flaws can trigger expensive damage if they slip past unnoticed. Run your eyes along every exposed rod and watch for the warning signs that point to trouble ahead. The goal is to catch a problem while it is still small, before it works its way into the seals and turns into a leak that costs you real money and downtime.

During your daily walkaround, pay close attention to the following:

• Nicks and small scratches that break the smooth chrome finish of the rod
• Pitting or rust spots that show up as rough patches on the surface
• Minor dents caused by falling debris or contact with rocks and obstacles
• Oil film or drips near the cylinder gland, which signal seals starting to give out

The reason these tiny imperfections matter so much comes down to how a cylinder works. As the rod slides in and out of its housing, it passes through tightly fitted seals that keep hydraulic oil where it belongs. Any rough spot on the chrome acts like a blade dragging across those seals thousands of times a day, slowly cutting them apart. What begins as a hairline scratch quickly becomes a significant leak, a loss of pressure, and eventually a cylinder that will not hold its position under load. Spotting a nick or a patch of pitting early gives you the chance to address it before it destroys the seals and contaminates the system. A dependable machine starts with an operator who knows its condition, and a daily inspection is the foundation of that knowledge.

Keep Rods Hidden When Parked

How you park your wheel loader has a direct effect on how long the cylinders last. Whenever the machine sits idle, whether for a lunch break or overnight, the exposed portion of each rod becomes vulnerable to damage that has nothing to do with the work it was built for. The simplest way to protect those surfaces is to tuck the bucket and lower the lift arms so the shiny rods are pulled back into their housings as far as they will go. Retracting the cylinders shields the polished chrome inside the cylinder body, where bumps, debris, and weather cannot reach it. This single habit, performed at the end of every shift, removes a surprising amount of risk from the equation.

Pulling the rods in protects them from several common threats that add up over the life of the machine:

• Accidental bumps from other equipment, vehicles, or tools moving around the yard
• Falling objects such as debris from overhead work or material shifting nearby
• Bad weather including rain, snow, and humidity, that promote rust on exposed chrome
• Unauthorized tampering that becomes harder when the working surfaces are tucked away

The benefit grows the longer the machine sits. A rod left fully extended for days or weeks in a damp yard will start to pit and corrode along the exposed section, and that corrosion becomes the seed of future seal failure once the loader returns to service. Lowering the arms and curling the bucket also drops the overall profile of the machine, which lowers the chance of catching on something during loading, unloading, or storage. Taking thirty seconds to position the cylinders correctly before you walk away is a small discipline that pays you back every time the machine sits unused. Treat it as the natural last step of shutting down, and your rods stay protected through every idle hour.

Wipe Down the Rods

Dirt is the constant enemy of a hydraulic cylinder, and keeping the rods clean is one of the most effective defenses you have. Wheel loaders work in mud, dust, sand, and all manner of abrasive material, and that grime cakes onto the exposed rods throughout the day. Before you put the machine away or tuck the arms in for storage, take a moment to wipe any dirt, mud, or grit off the exposed metal rods. A clean rag and a careful pass along each rod is all it takes to remove the material that would otherwise cause serious harm. This quick step fits easily into your shutdown routine and protects the most vulnerable surfaces on the machine.

The danger lies in what happens when grit is left in place. As soon as the cylinder retracts, the rod carries any dirt or mud directly into the seal assembly, where it acts like sandpaper against the wiper and rod seals. Watch for these situations that make wiping down especially important:

• After working in wet, muddy conditions where material clings stubbornly to the chrome
• When operating around sand, gravel, or other highly abrasive material
• Following exposure to road salt or corrosive substances that attack both rod and seals
• Before retracting a heavily soiled rod, since that motion pulls grit straight inside

When abrasive particles get pushed into the seals, they grind away from the inside, wearing the seals down far faster than normal use ever would. Over time, this leads to premature seal failure, internal leaks, and scoring on the rod surface itself. Once a rod is scored, the damage is permanent and usually means replacing the rod or rebuilding the entire cylinder. Building this simple cleaning step into your routine keeps abrasive material out of the system and protects both the seals and the rods they ride against. It is a small effort that directly extends the working life of every cylinder on the loader, and it costs you nothing but a moment of attention.

Keep the Hydraulic Oil Clean

The condition of your hydraulic oil determines the health of the entire system, including the cylinders that depend on it. Hydraulic fluid does far more than transmit power. It lubricates the internal components, carries away heat, and protects precision surfaces from wear. When that oil stays clean, the cylinders glide smoothly and hold their position reliably under load. When it becomes contaminated, the fluid turns into an abrasive slurry that grinds away at the very parts it is meant to protect. Keeping the oil clean is therefore one of the most important things you can do to preserve your cylinders and the broader hydraulic system that drives the machine.

The most effective way to keep the oil clean is to change your hydraulic filters exactly when the manual specifies, without stretching the intervals to save time or money. Build these practices into your maintenance routine:

• Follow the manufacturer’s filter schedule precisely rather than waiting until problems appear
• Use clean filling practices by wiping fittings and keeping new oil sealed until it goes in
• Inspect the oil regularly for cloudiness, a milky look, or a burnt smell that points to trouble
• Service filtration more often when the loader works in heavy dust or extreme conditions

The reason this matters comes down to simple physics. Microscopic particles suspended in the oil circulate through the cylinder with every stroke, scrubbing against the piston seals and the polished bore of the barrel. This abrasive action slowly wears down the internal seals, which allows oil to bypass the piston. The result is a cylinder that loses strength and begins to drift, settling under load instead of holding firm. That drift is often the first sign that contamination has been quietly damaging the system for some time. By treating oil cleanliness as a priority rather than an afterthought, you protect not just the cylinders but every pump, valve, and hose in the machine. Clean oil keeps the whole hydraulic system strong and responsive for the long haul.

Don’t Force the Machine to its Limit

Smooth, controlled operation protects your cylinders just as much as any maintenance routine. One of the most damaging habits an operator can fall into is repeatedly driving the arms to their absolute physical stop while under a heavy load. This practice, often called dead-heading, forces the cylinder hard against its internal limit at the end of travel. While the cylinder is built to handle its full range of motion, slamming into that stop again and again under pressure creates forces the component was never meant to absorb on a regular basis. Learning to respect the machine’s limits is one of the most effective ways to extend the life of every cylinder on the loader.

The harm comes from the pressure spikes that occur at the moment of impact. When a moving cylinder reaches the end of its stroke abruptly while carrying a heavy load, the hydraulic pressure inside surges far above normal levels in an instant. Those repeated spikes do their damage in several ways:

• Seal blowouts as the sudden pressure overwhelms the seals and forces oil past them
• Bent or bowed rods from the shock of heavy loads driving the rod against its hard stop
• Cracked mounts and pins that fatigue and fail under the repeated structural stress
• Internal damage to the piston and barrel from constant hammering at the end of travel

Avoiding this damage is largely a matter of technique. Operate the loader with deliberate, smooth movements, and ease off the controls as a cylinder approaches the end of its range, especially when lifting or pushing under full load. Train newer operators to feel where the limits are and to respect them rather than relying on the mechanical stops to halt the motion. This gentler approach keeps pressure within safe bounds, protects the seals and rods, and preserves the structural integrity of the mounts that hold everything in place. A machine operated with care simply lasts longer, and treating the cylinders with respect during every cycle rewards you with years of dependable service.

Conclusion

Hydraulic cylinders are too important and too costly to take for granted. As the muscles behind every lift, curl, and load your wheel loader handles, they deserve consistent attention and protection from the harsh conditions they face every day. Daily inspections catch small nicks and scratches before they grow; retracting the rods when parked shields them from bumps and weather; wiping the rods clean keeps abrasive grit away from the seals; clean hydraulic oil protects the internal parts; and smooth operation prevents the pressure spikes that lead to serious failures. None of these practices demand much time or expense, yet together they make the difference between a machine that runs reliably for years and one that spends days in the shop for avoidable repairs. Build these habits into your routine; hold your crew to them on every job, and your cylinders will keep delivering the power and precision your work depends on. Reliable equipment is the result of consistent care, and protecting your hydraulic cylinders is one of the surest ways to keep your wheel loader working hard and earning its keep.
