Powerful Hydraulics
Responsive lifting performance for demanding daily work.
Home
Product Featured
Premium Engineering
Lift More.
Work Smarter.
A high-strength hydraulic lifting system delivers stable, controlled performance from ground level to full lift height.
1322 lbs (600kg)
Maximum rated capacity
Hydraulic Power
Responsive lifting control
Stable Geometry
Balanced at every position
Precision hydraulic movement
Heavy-Duty Boom
Reinforced construction for dependable operation.
High Efficiency
Optimized geometry improves reach and productivity.
Easy Maintenance
Accessible components help reduce service time.
25HP
KUBOTA DIESEL ENGINE
WHEEL LOADER FEATURES
WHY CHOOSE THE TYPHON SKOOP WHEEL LOADER
The TYPHON SKOOP Wheel Loader is built for strength, lifting power, and efficient material handling. Designed for demanding jobs, it delivers reliable performance with compact versatility.
HEAVY-DUTY PERFORMANCE
Powered by a Kubota D1105 water-cooled 18.2kw diesel engine with a machine weight of 4,600 lbs.
STRONG LOAD CAPACITY
Rated load of 1760 lbs with up to 2200 lbs maximum load using the main arm.
VERSATILE FUNCTIONALITY
Includes a 0.3 cbm bucket, 120mm digging depth, and 30% gradeability for varied jobsite tasks.
EXTENDED REACH & LIFT
Features dump heights up to 2825mm and telescopic reach with 2 feet of extension.
Featured
Wheel Loader
Built for strength, productivity, and smooth material handling across construction, farming, and industrial job sites.

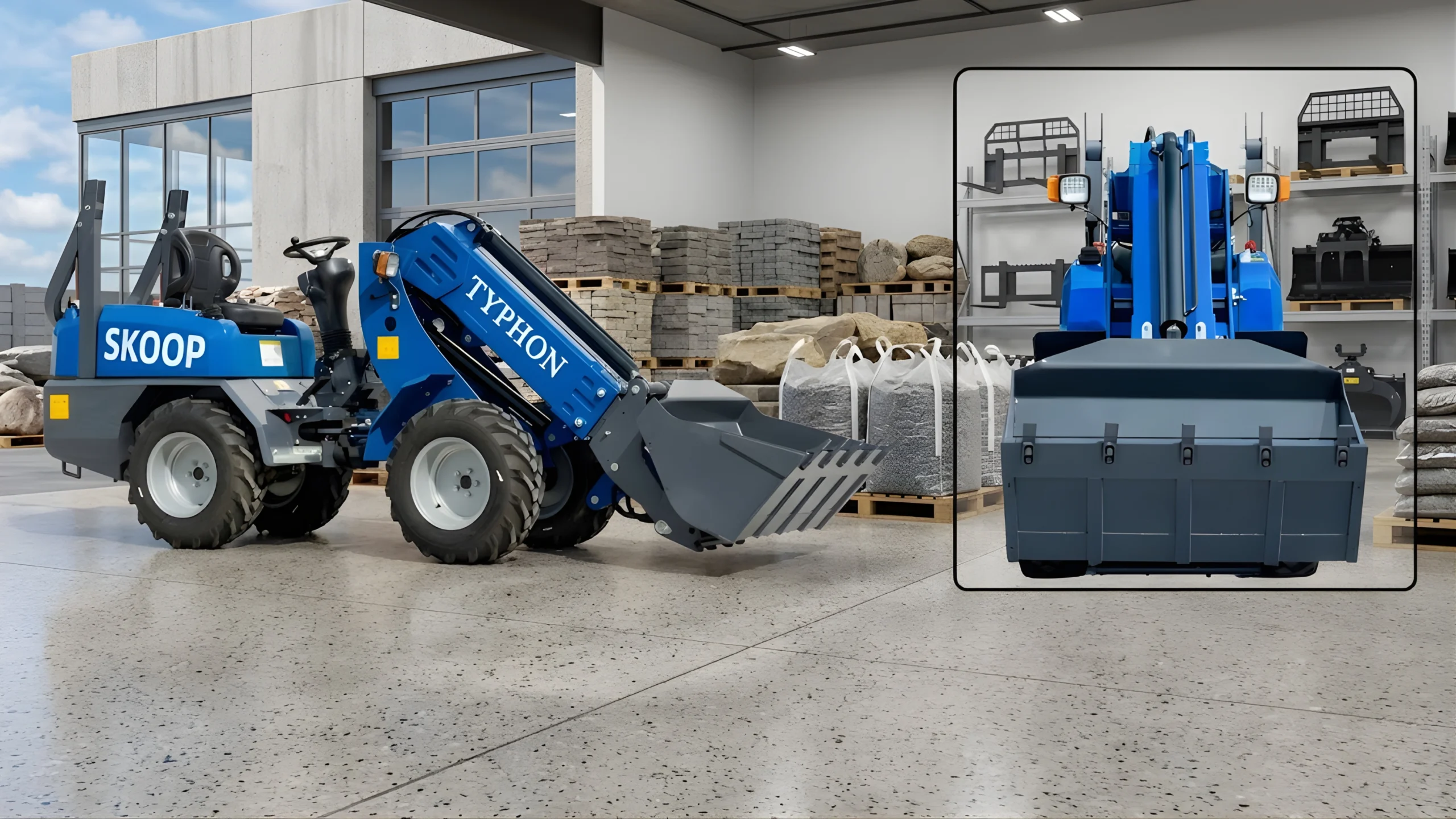

Attachment

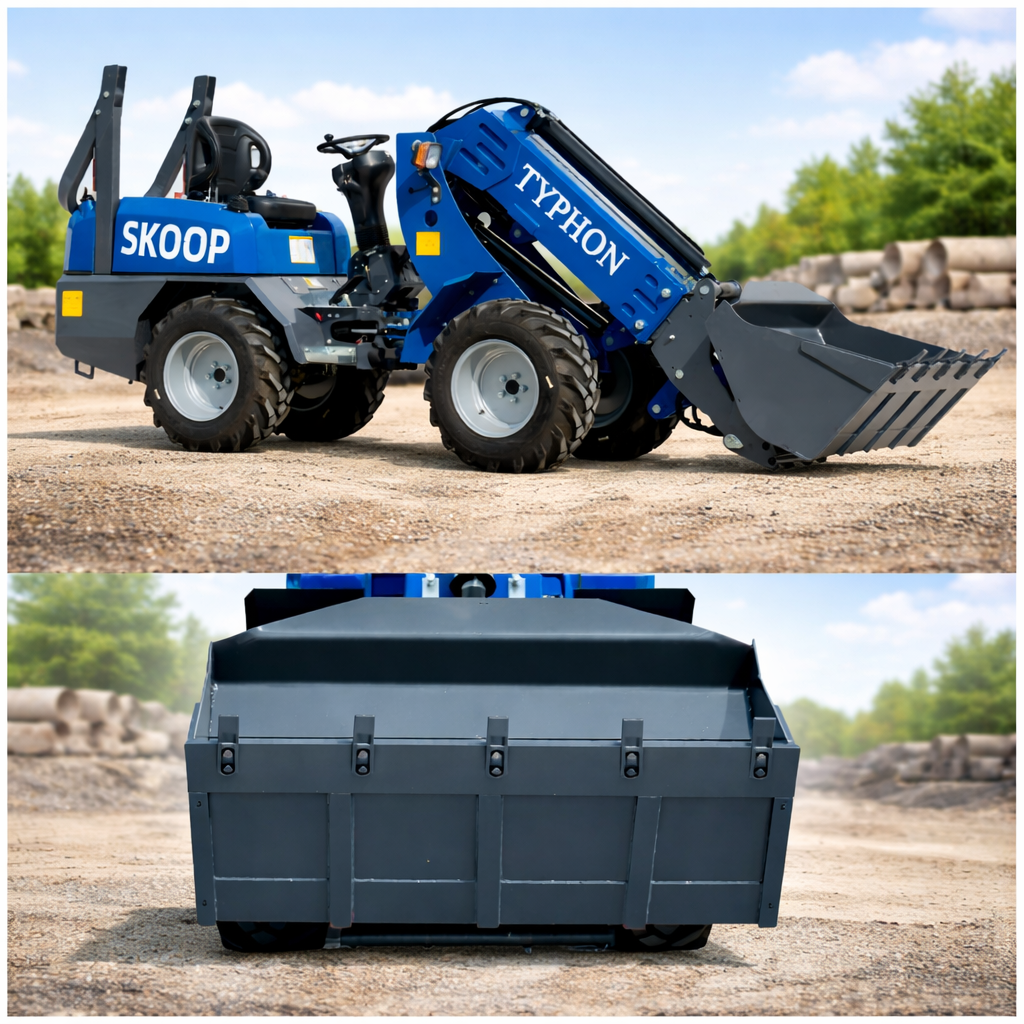

Bucket
Ideal for loading soil, sand, gravel, and bulk materials with speed and dependable performance.
Attachment

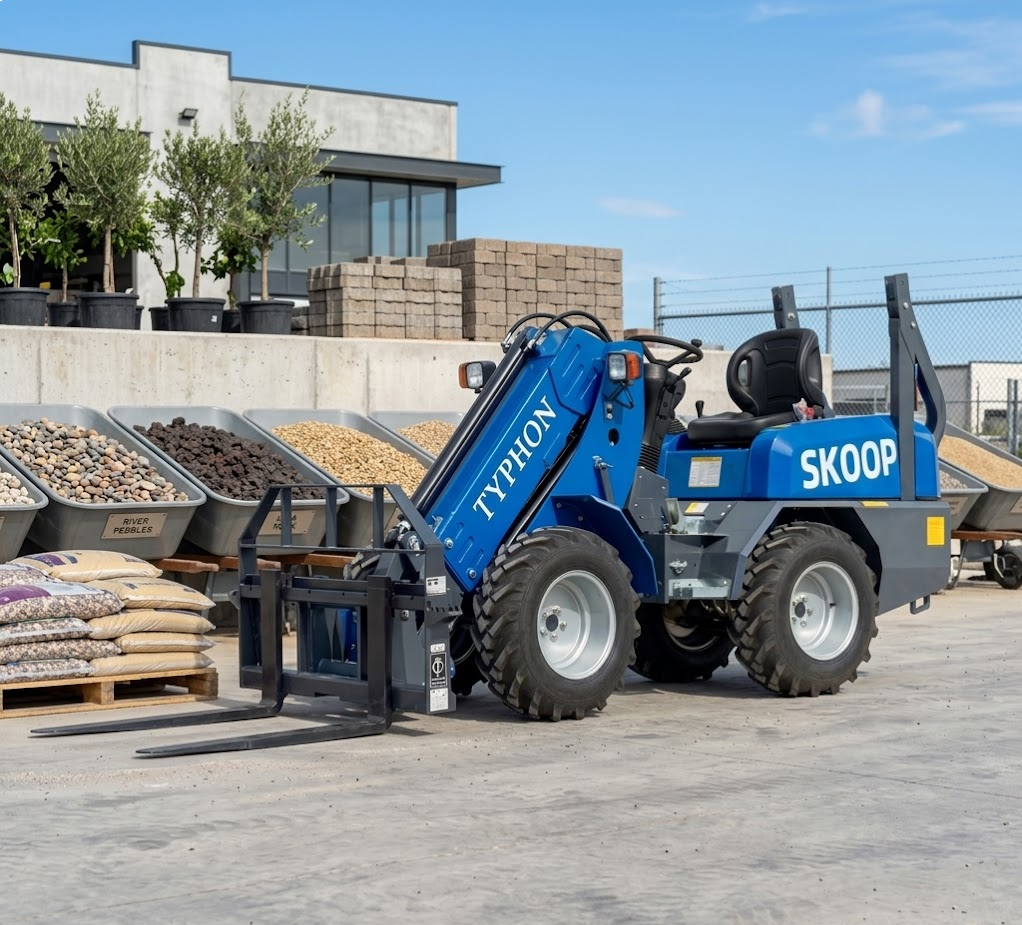

Fork Attachment
Designed for pallet handling, lifting, and organized transport of heavy materials on site.
Attachment

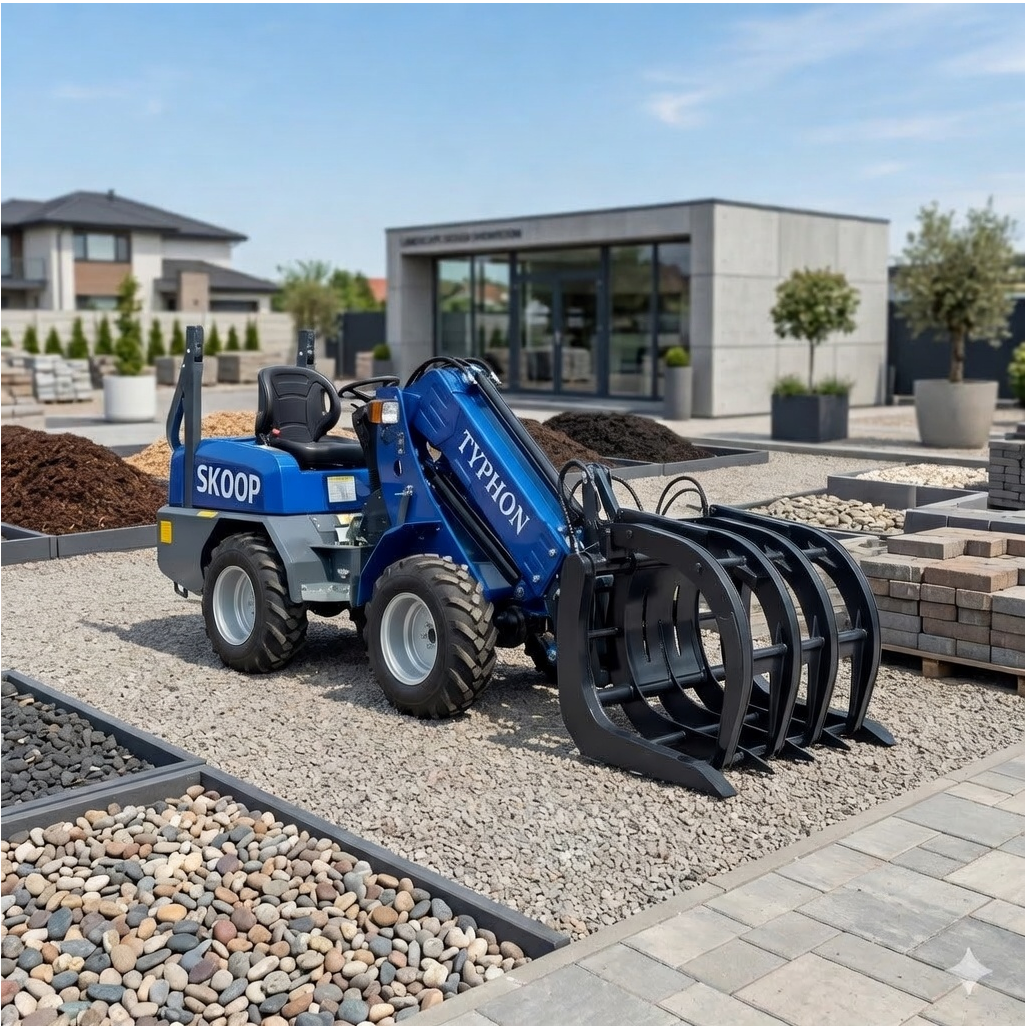

Grapple Attachment
Engineered for secure handling of logs and heavy materials, this attachment enhances productivity while allowing quick switching to reduce downtime and improve operational flexibility.
Attachment
Lawn Mower
Designed for efficient grass cutting and clean ground maintenance, this attachment delivers smooth performance across farms, roadside areas, parks, and large outdoor job sites.
Product Categoies
Explore our categories to find the right equipment for your needs.
TYPHON SKOOP Articulated Wheel Loader with Kubota D1105 Engine, Enclosed Cab & Loader Bucket
Explore MoreTYPHON TERROR XVII PRO Prestige Edition Mini Excavator 4000LB Kubota D902 Diesel, Enclosed Cab with AC/Heat, Hydraulic Thumb
Explore More- Sale!
Brand New TYPHON STOMP V900 1.4-Ton Compact Track Loader with 25HP Kubota Diesel Engine 1,102 lb Max Load
Explore More TYPHON TERROR XVII PRO Prestige Edition 4000 lb Enclosed Mini Excavator with Kubota Power & Advanced Hydraulics
Explore More- Sale!
Brand New TYPHON STOMP V900 1.4 Ton Mini Track Loader Featuring Dual Auxiliary Hydraulics & Kubota D1105 25HP USA Engine
Explore More TYPHON TERROR XVII PRO Prestige Edition – Enclosed Mini Excavator with AC, Heater & Ergonomic Comfort
Explore More
TYPHON SKOOP Wheel Loader vs SKOOP Cabin
Compare the TYPHON SKOOP TYPH-0801 standard wheel loader with the SKOOP telescopic wheel loader featuring an enclosed operator cab. Explore loading capacity, dimensions, hydraulic performance and operator comfort to find the right machine configuration for your work.
Standard Model · TYPH-0801
TYPHON SKOOP Wheel Loader
A compact articulated wheel loader powered by a Kubota D1105 engine, designed for everyday loading, agriculture, landscaping, construction and material handling.

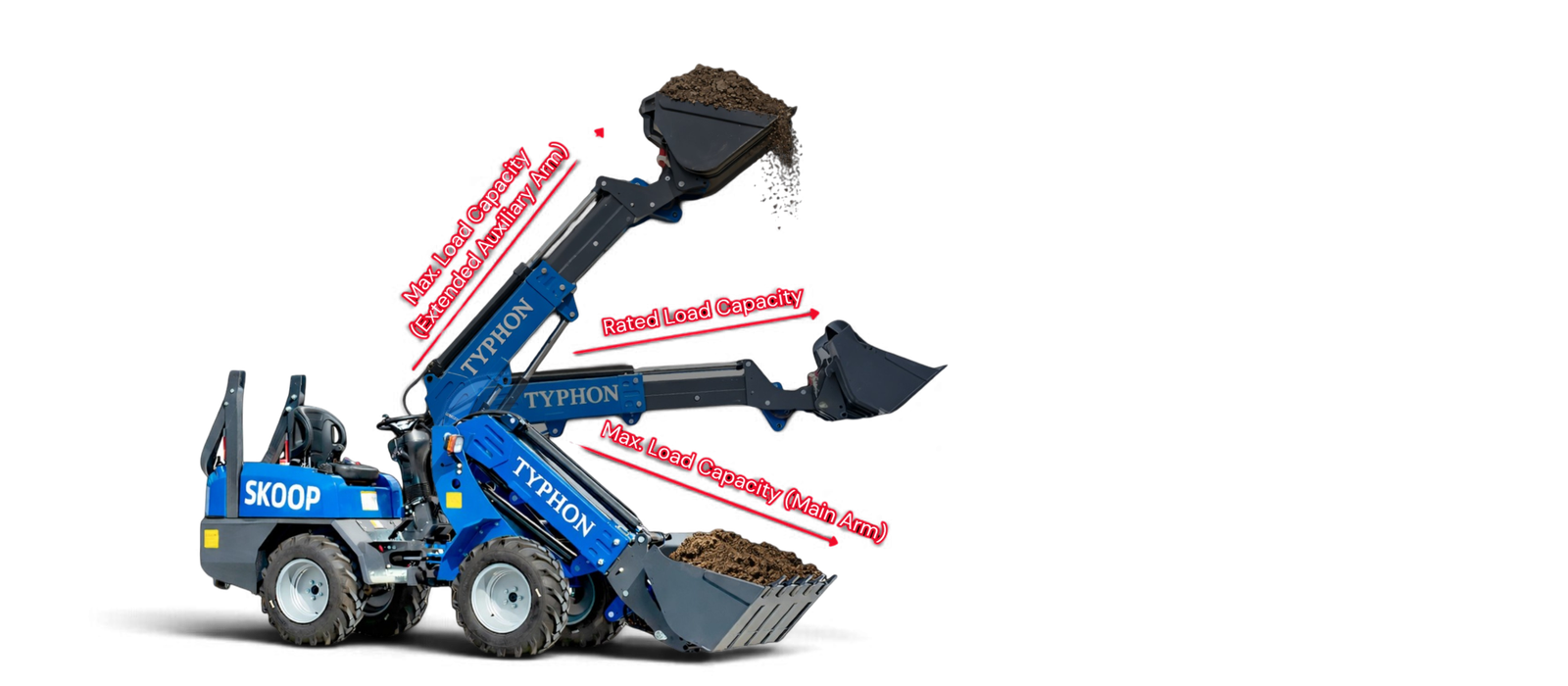

- 800 kg rated load capacity
- 1,000 kg maximum load at main arm
- 600 kg maximum load with extended auxiliary arm
- 0.3 m³ bucket capacity
- 45° articulated steering angle
- 30% gradeability
- 12 km/h maximum travel speed
- 2,100 kg curb weight
- 30 L diesel tank
- 30 L hydraulic oil tank
VS
Enclosed Cab Model
TYPHON SKOOP Cabin
The TYPHON SKOOP Cabin combines articulated loading capability with an enclosed operator environment. The supplied description includes air conditioning and a heater for additional operating comfort.
- Kubota D1105 diesel engine
- 800 kg rated load capacity
- 1,000 kg maximum load capacity
- 0.3 m³ bucket capacity
- Enclosed operator cab
- Air conditioning and heater
- 45° articulated turning angle
- 30% climbing gradient
- 12 km/h maximum travel speed
- 4,750 lb (approximately 2,155 kg) net vehicle body weight
- 40 L diesel tank
- 40 L hydraulic oil tank
- 84 L/min moving hydraulic flow
- 42 L/min working hydraulic flow
Specification
Standard SKOOP
SKOOP Cabin
Engine
Kubota D1105
Kubota D1105
Rated Load
800 kg (1,764 lb)
800 kg (1,764 lb)
Maximum Load
1,000 kg main arm; 600 kg extended auxiliary arm
1,000 kg (2,205 lb); auxiliary-arm rating not supplied
Bucket Capacity
0.3 m³
0.3 m³ (10.59 ft³)
Articulated Turning Angle
45°
45°
Gradeability
30%
30%
Maximum Travel Speed
12 km/h
12 km/h (7.46 mph)
Vehicle Weight
2,100 kg curb weight
4,750 lb (approximately 2,155 kg) net vehicle body weight
Overall Length
4,430 mm
4,274 mm (168.27 in)
Wheelbase / Wheel Spacing
1,550 mm wheelbase
1,695 mm (66.73 in) wheel spacing
Overall Wheel Width
1,046 mm
1,320 mm (51.97 in)
Minimum Ground Clearance
242 mm
242 mm (9.53 in)
Digging Depth
120 mm
120 mm (4.72 in)
Unloading Height
2,215 mm arm retracted; 2,825 mm arm extended
2,200 mm (86.61 in) at highest point
Bucket Height at Maximum Reach / Retraction Height
4,035 mm at maximum reach
3,605 mm (141.93 in) at highest point
Bucket Rollback / Retraction Angle
51° at lowest and highest positions
53.5° at lowest point; 56° at highest point
Unloading Angle at Highest Point
31°
35°
Safe Unloading Distance
1,350 mm arm extended; 830 mm arm retracted
518 mm (20.39 in)
Hydraulic Working Flow
Not listed in supplied standard sheet
42 L/min (11.09 gpm)
Hydraulic Moving Flow
Not listed in supplied standard sheet
84 L/min (22.19 gpm)
Hydraulic Oil Tank
30 L
40 L (10.57 gal)
Diesel Tank
30 L
40 L (10.57 gal)
Tire Specification
10.0/75-15.3 (tire listed in standard dimensional sheet)
Reference tire 400/60-15.5; options 10.0/75-15.3 and 400/60-15.5
Cab Height
Not listed
2,350 mm (92.52 in)
Operator Comfort
Standard operator station; confirm exact configuration
Enclosed cab, AC and heater (from supplied description)
Choose the Standard SKOOP If...
You want the standard TYPH-0801 configuration with its documented dimensions, 30 L tanks, and separate load ratings for the main arm and extended auxiliary arm.
Choose the SKOOP Cabin If...
An enclosed operator environment with air conditioning and a heater is important for your work. The supplied cabin sheet lists 800 kg rated load, 1,000 kg maximum load, 0.3 m³ bucket capacity, 40 L tanks and hydraulic flow rates of 84 L/min and 42 L/min.

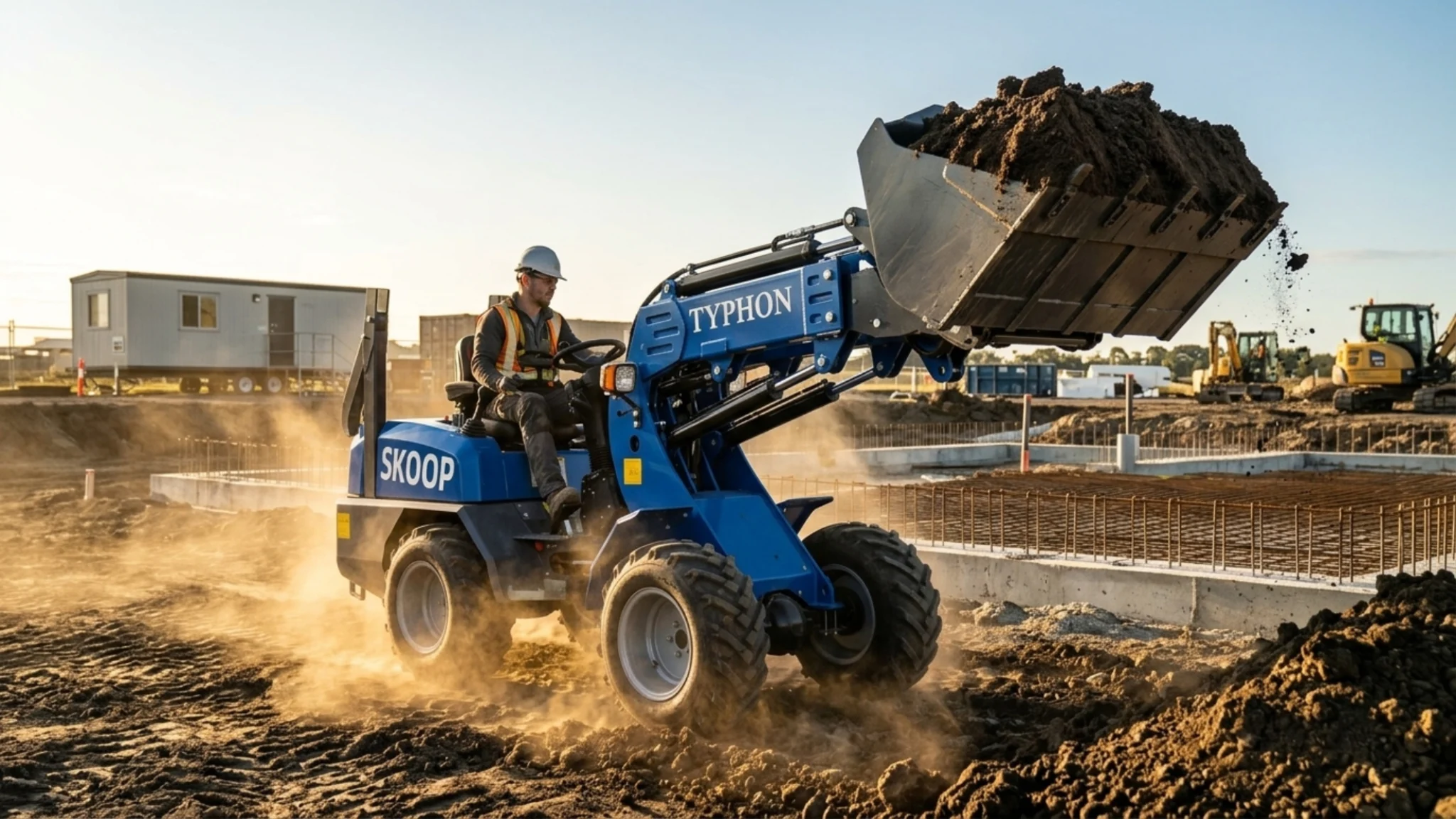

Articles & Blogs
Explore some of the best blogs Wheel Loader
Wheel Loader Media
Watch Wheel Loaders in Action
Frequently Asked Questions
Everything you need to know about our wheel loaders, excavators, forklifts, and skid steers.
What types of machines do you offer?
We offer a wide range of equipment including wheel loaders, mini excavators, forklifts, and skid steer loaders designed for construction, farming, and industrial use.
Are your machines suitable for small job sites?
Yes, our compact machines are designed to work efficiently in tight spaces while still delivering powerful performance.
Do your machines come with a warranty?
Most of our machines come with a manufacturer warranty. Please check the product details or contact us for specific warranty information.
Do you ship machines across the USA?
Yes, we provide fast and reliable shipping across the United States, ensuring your equipment arrives safely and on time.
Can I request a quote instead of buying online?
Absolutely! You can request a quote directly from our website, and our team will get in touch with you to assist further.
What Our Customers Say
I purchased the wheel loader last month, and it has exceeded my expectations. Powerful, reliable, and easy to operate—highly recommended!
John D.
Texas, USA
The customer service was fantastic, and the delivery was quick. The loader works perfectly on my construction site.
Sarah M.
California, USA
I’ve used many loaders before, but this one is by far the most efficient. Great investment for my business
Michael R.
Florida, USA

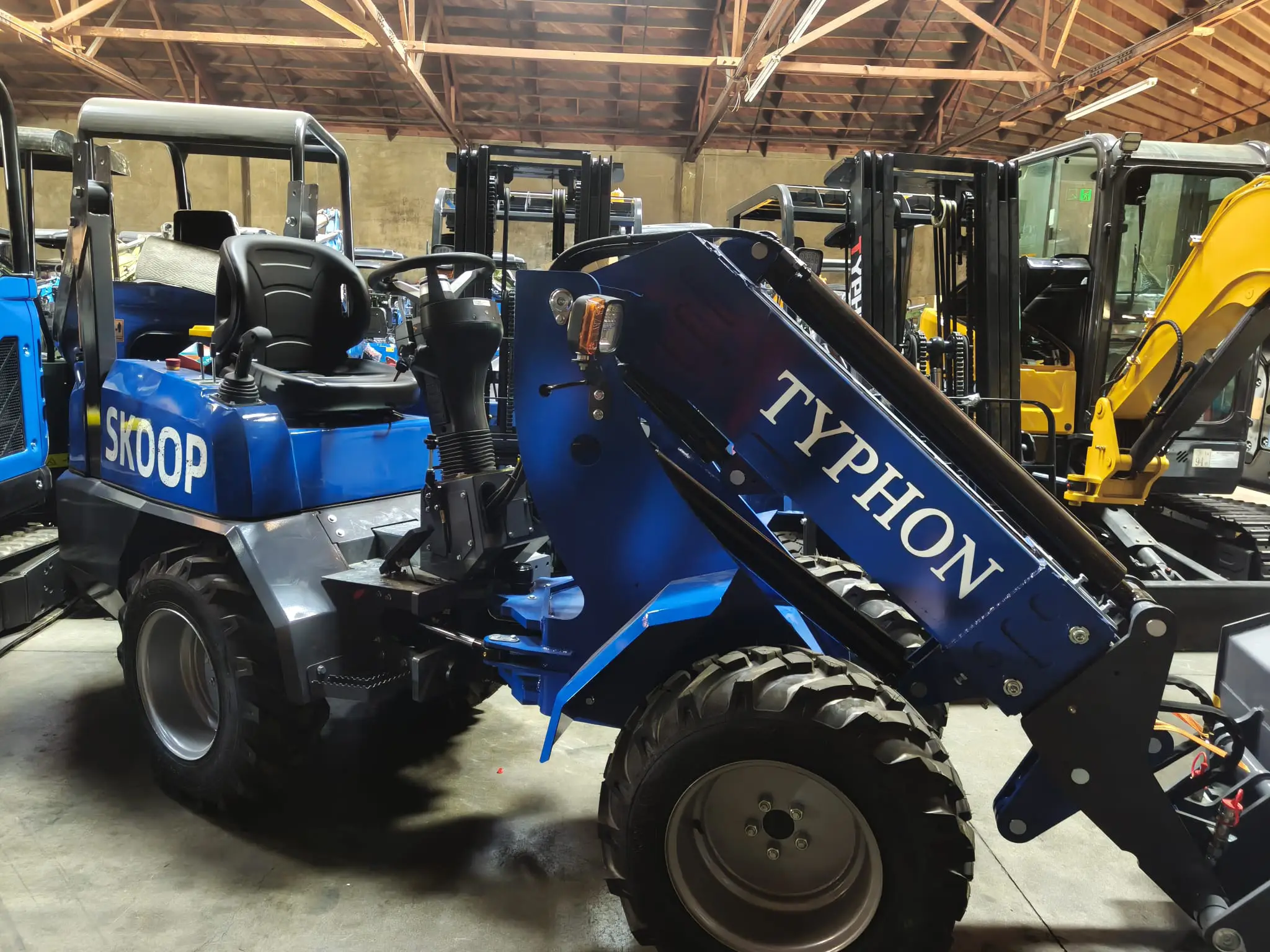

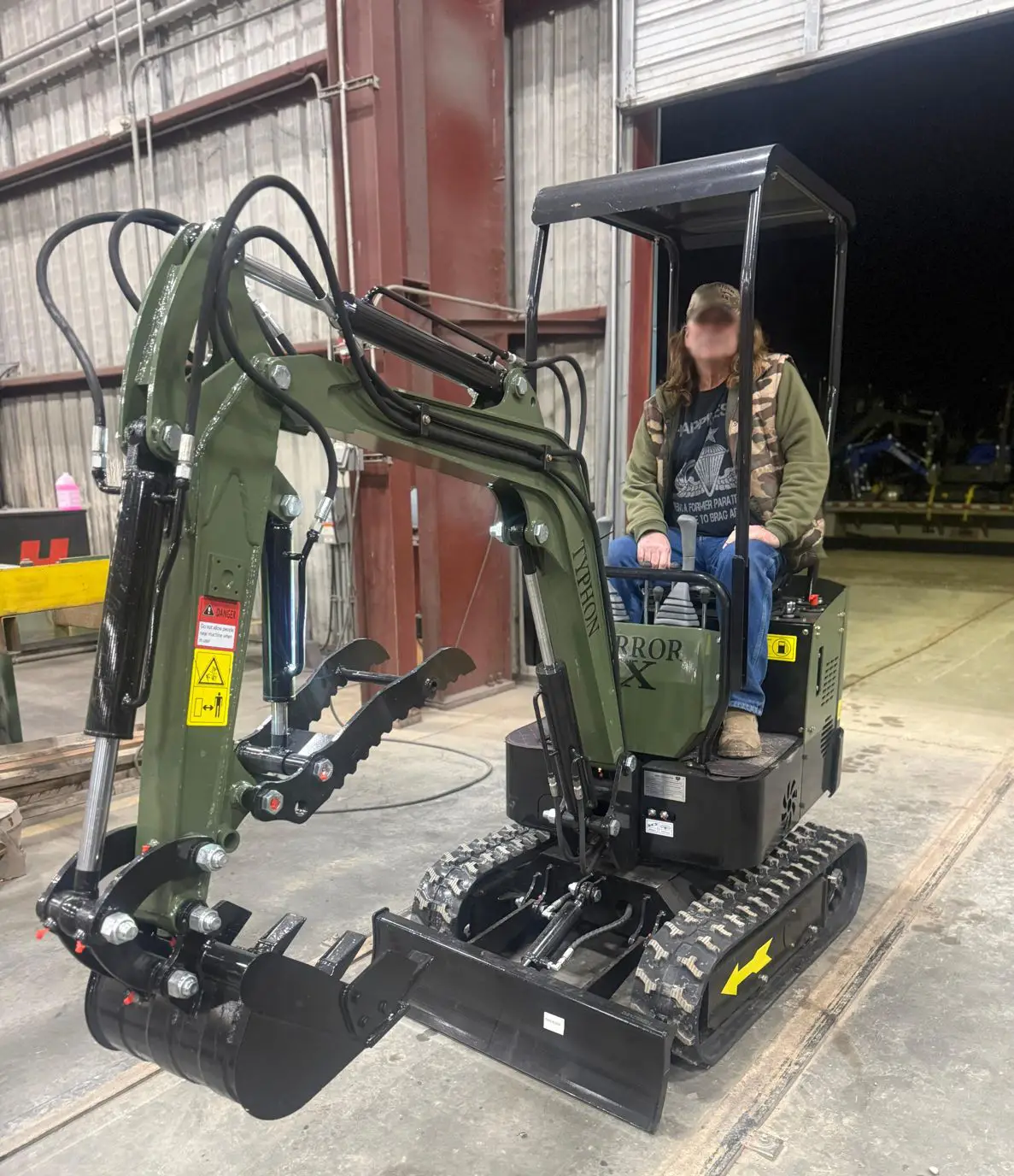

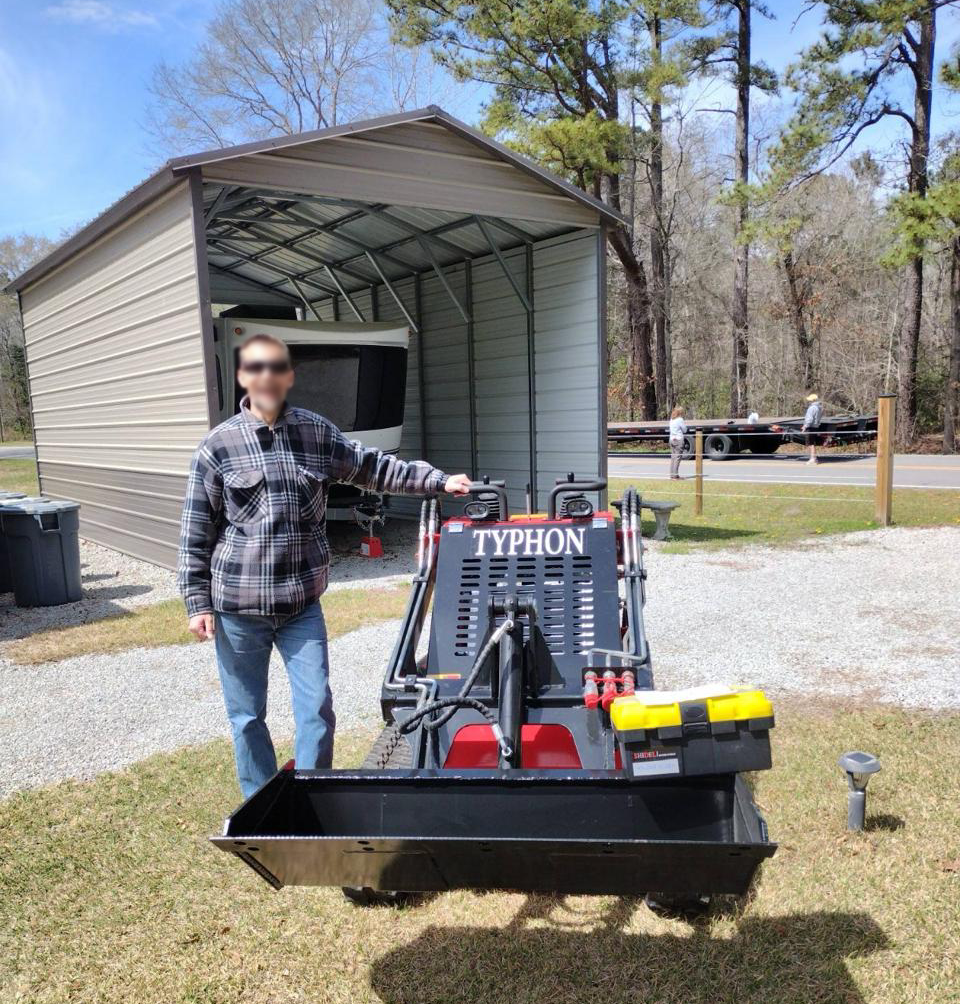

Delivered to Our Customers
×
❮
