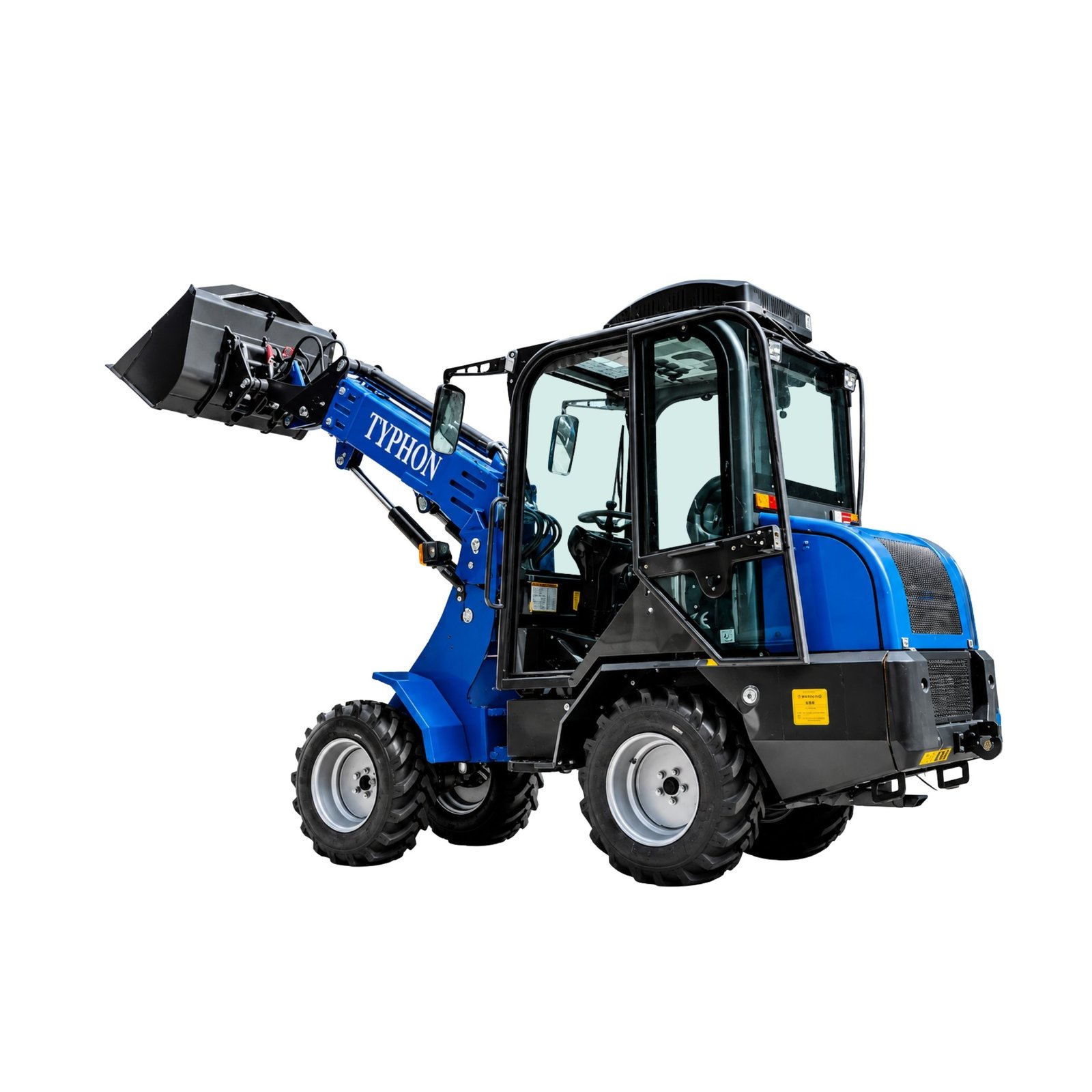

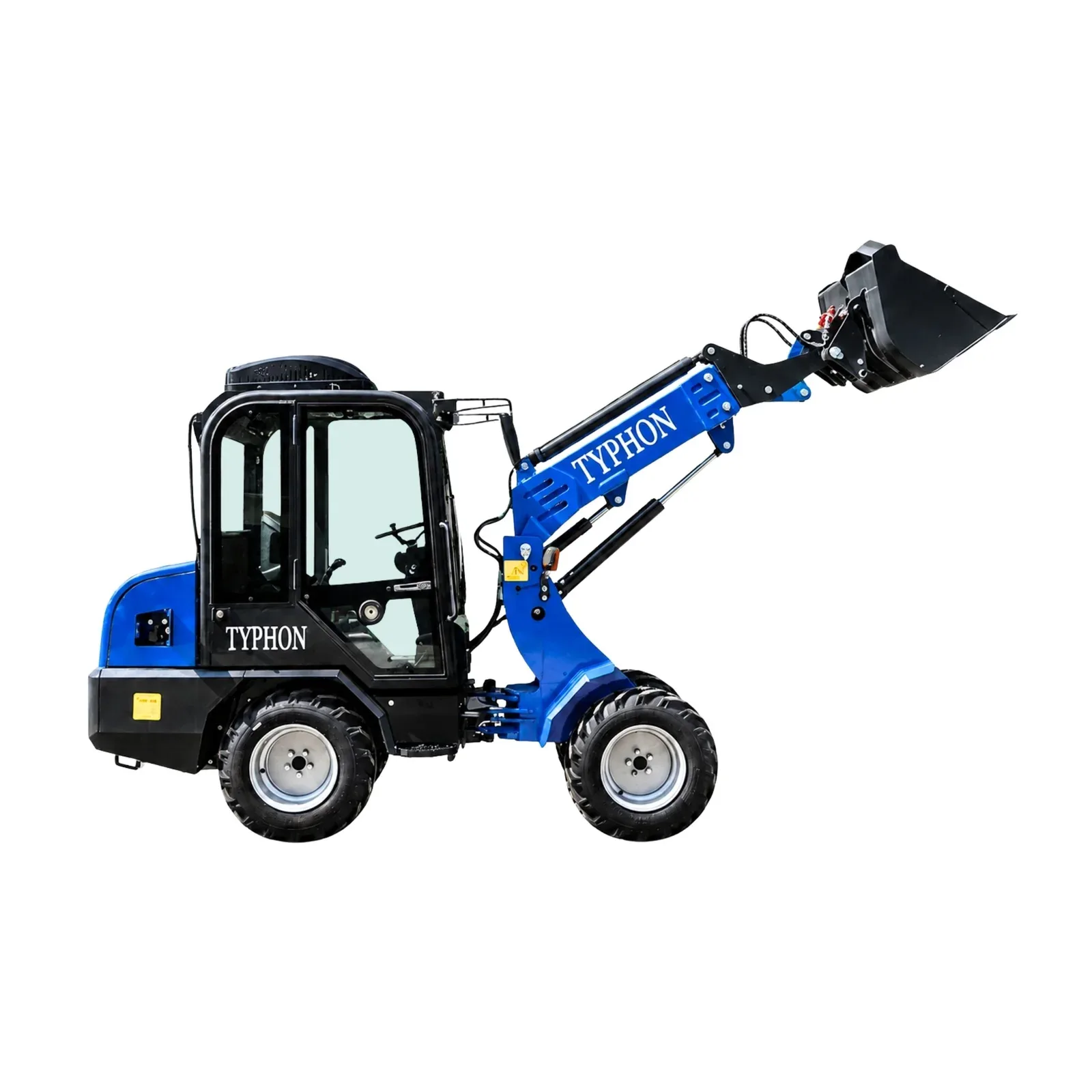

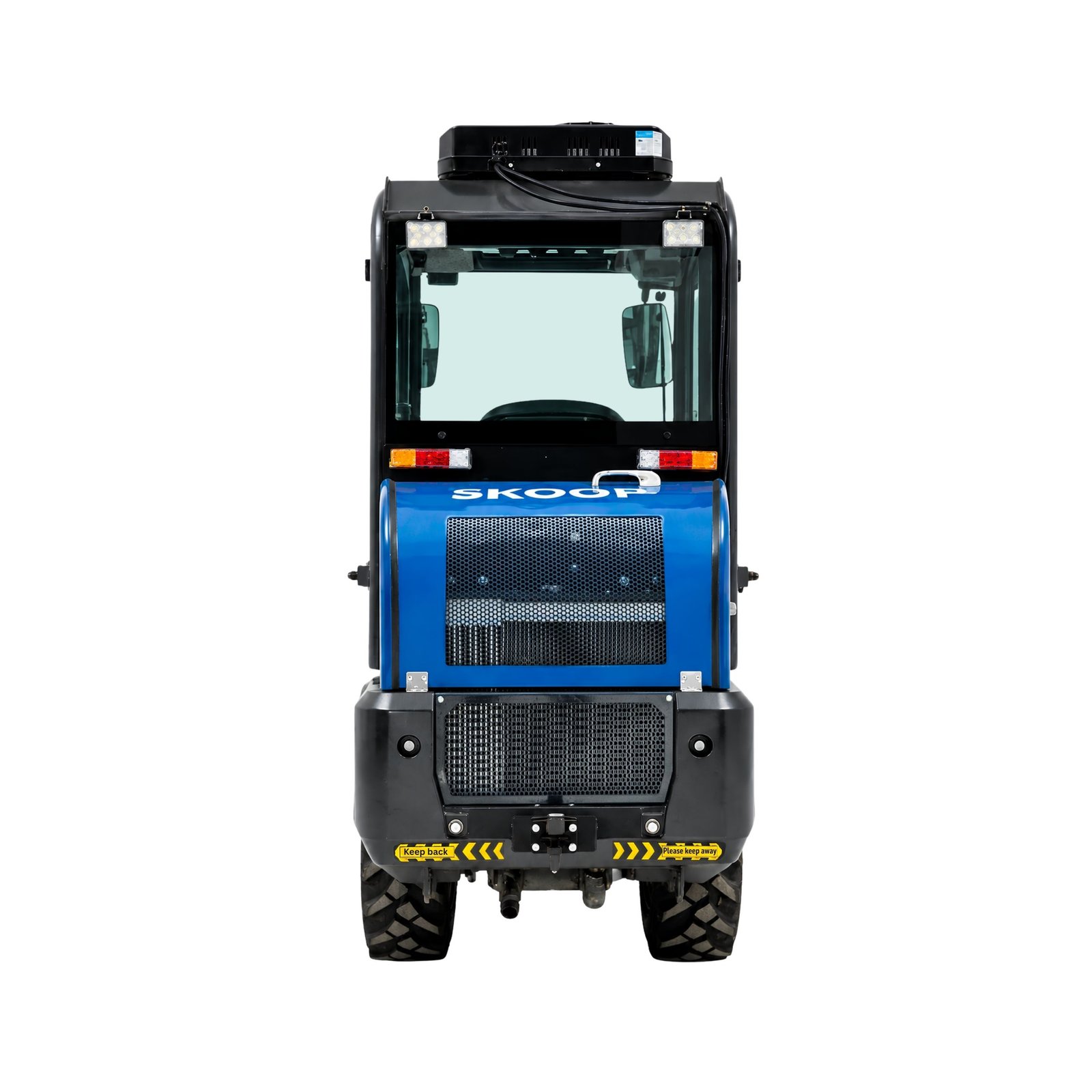

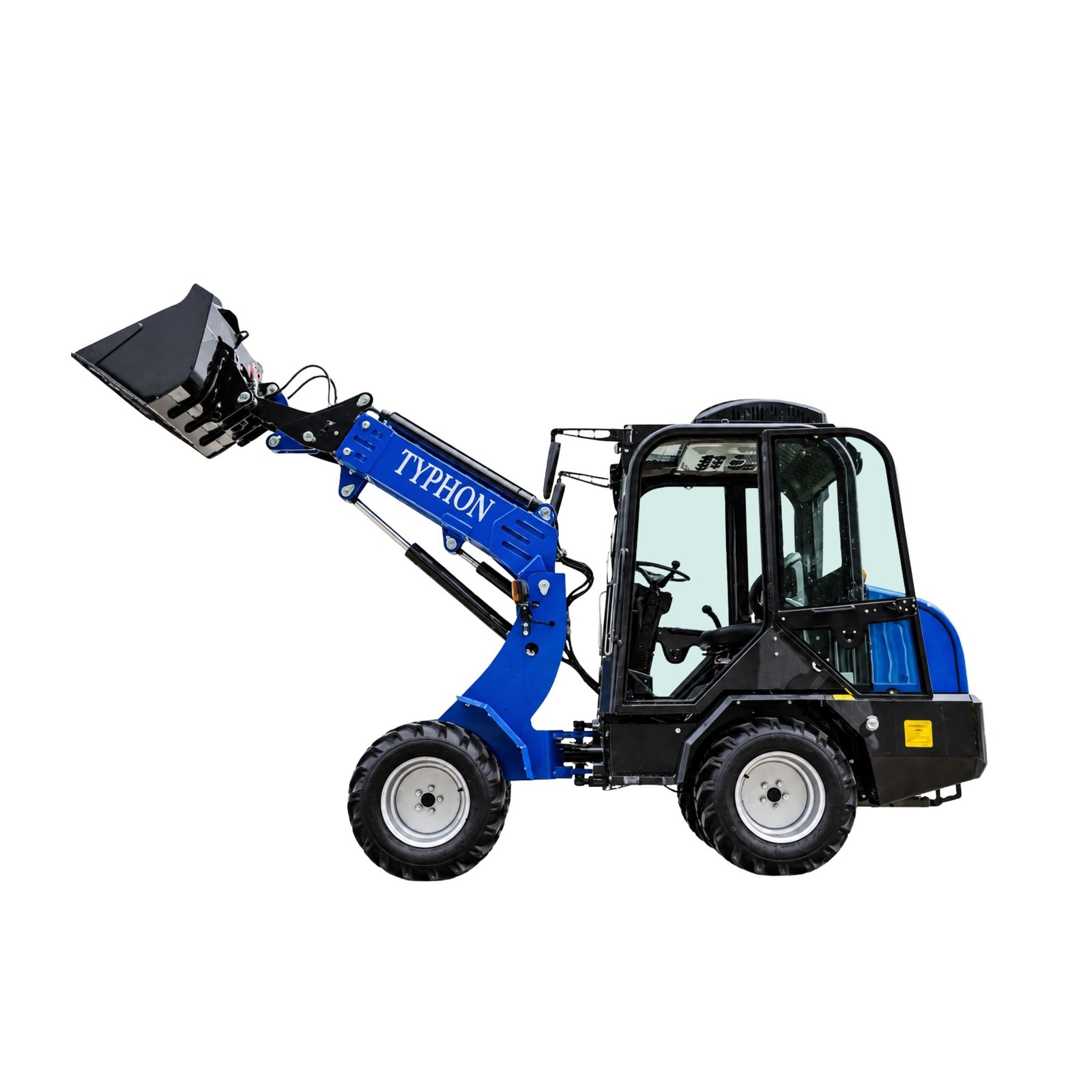

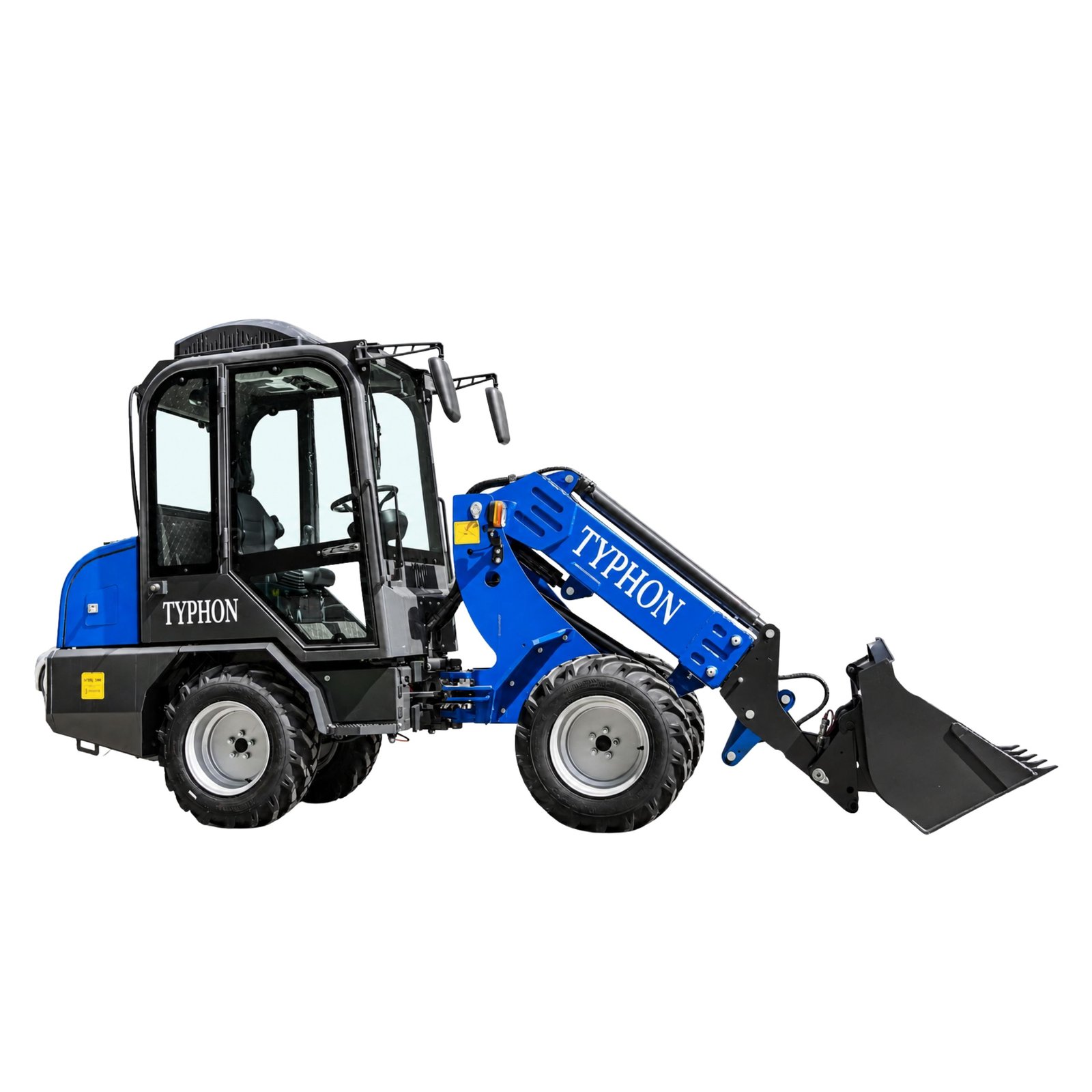

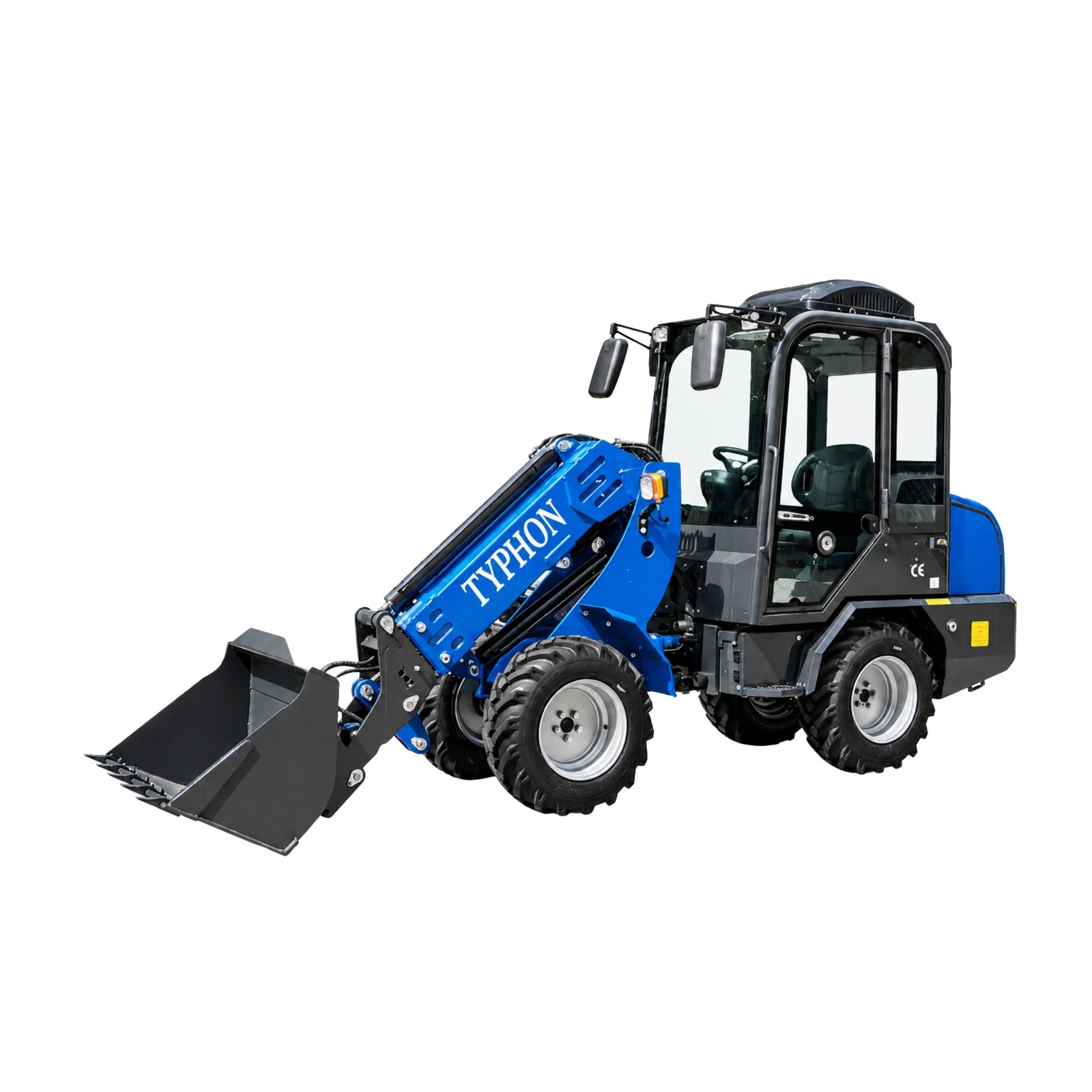

TYPHON SKOOP Articulated Wheel Loader

The TYPHON SKOOP Articulated Wheel Loader is a compact and versatile loading machine designed for construction, agriculture, landscaping, road maintenance, material handling, and general loading applications. Equipped with an enclosed operator cab, front loader bucket, and Kubota D1105 diesel engine, the SKOOP combines practical loading performance, maneuverability, operator comfort, and a compact working footprint.

With an 800 kg (1,764 lb) rated load capacity and 1,000 kg (2,205 lb) maximum load capacity, the TYPHON SKOOP is designed to scoop, lift, transport, and unload a wide range of materials. Its
0.3 m³ bucket capacity provides practical material-handling
capability for everyday loading tasks.

Compact Articulated Design

The SKOOP features a 45° articulated turning angle, allowing the machine to maneuver effectively in confined work areas and around obstacles. This articulated configuration is particularly useful on construction sites, farms, landscaping projects, property-maintenance areas, and other locations where working space may be limited.

With a minimum ground clearance of 242 mm (9.53 in) and a 30% climbing gradient, the loader is designed to operate across uneven surfaces and moderate slopes while maintaining practical mobility around the job site.

The machine has a maximum travel speed of 12 km/h (7.46 mph),making it suitable for moving between loading and unloading areas within a work site.

Kubota D1105 Diesel Engine

The TYPHON SKOOP is powered by a Kubota D1105 diesel engine,providing a compact diesel power solution for loading, transportation, and material-handling operations.

The Kubota D1105 platform is widely used in compact industrial and construction equipment. Exact engine output can vary depending on the specific D1105 configuration, so the applicable engine rating should be confirmed according to the installed engine specification.

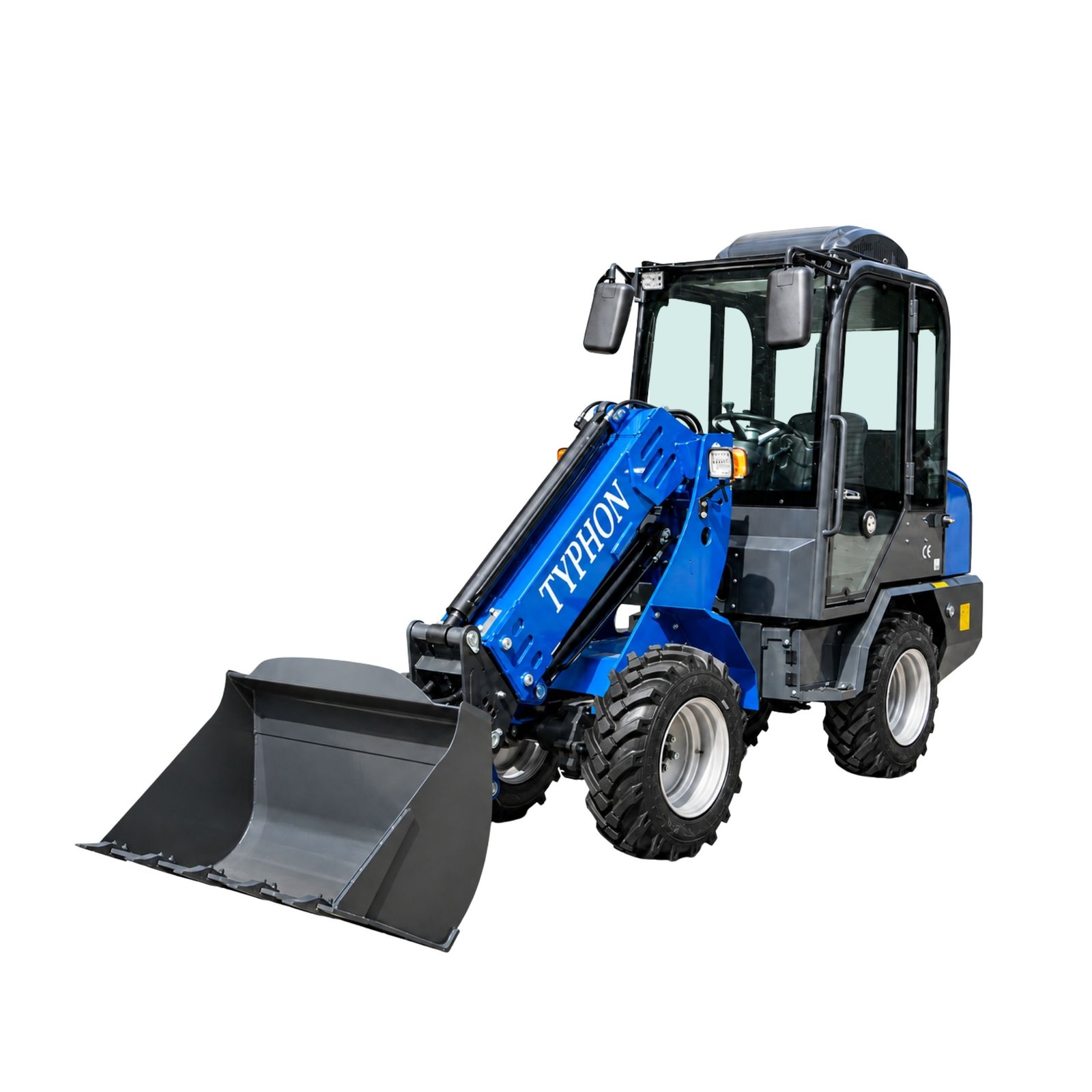

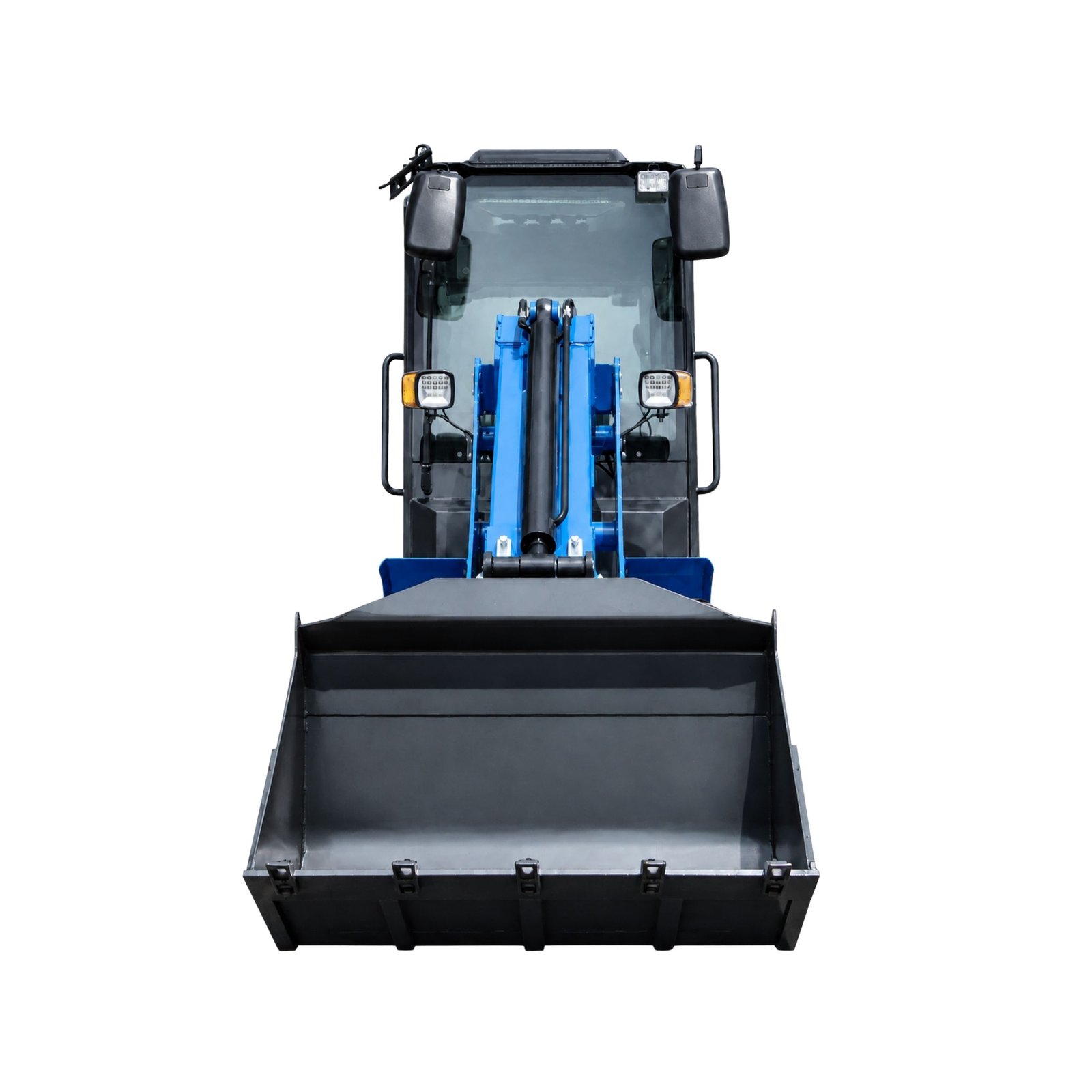

Front Loader Bucket

The front loader bucket has a 0.3 m³ capacity and is designed for everyday material-handling operations.

The bucket can be used for moving materials such as:

• Soil
• Sand
• Gravel
• Agricultural materials
• Landscaping materials
• Construction materials
• General bulk materials

The bucket provides practical capability for scooping, lifting, transporting, and unloading materials around construction sites, farms, landscaping projects, and property-maintenance operations.

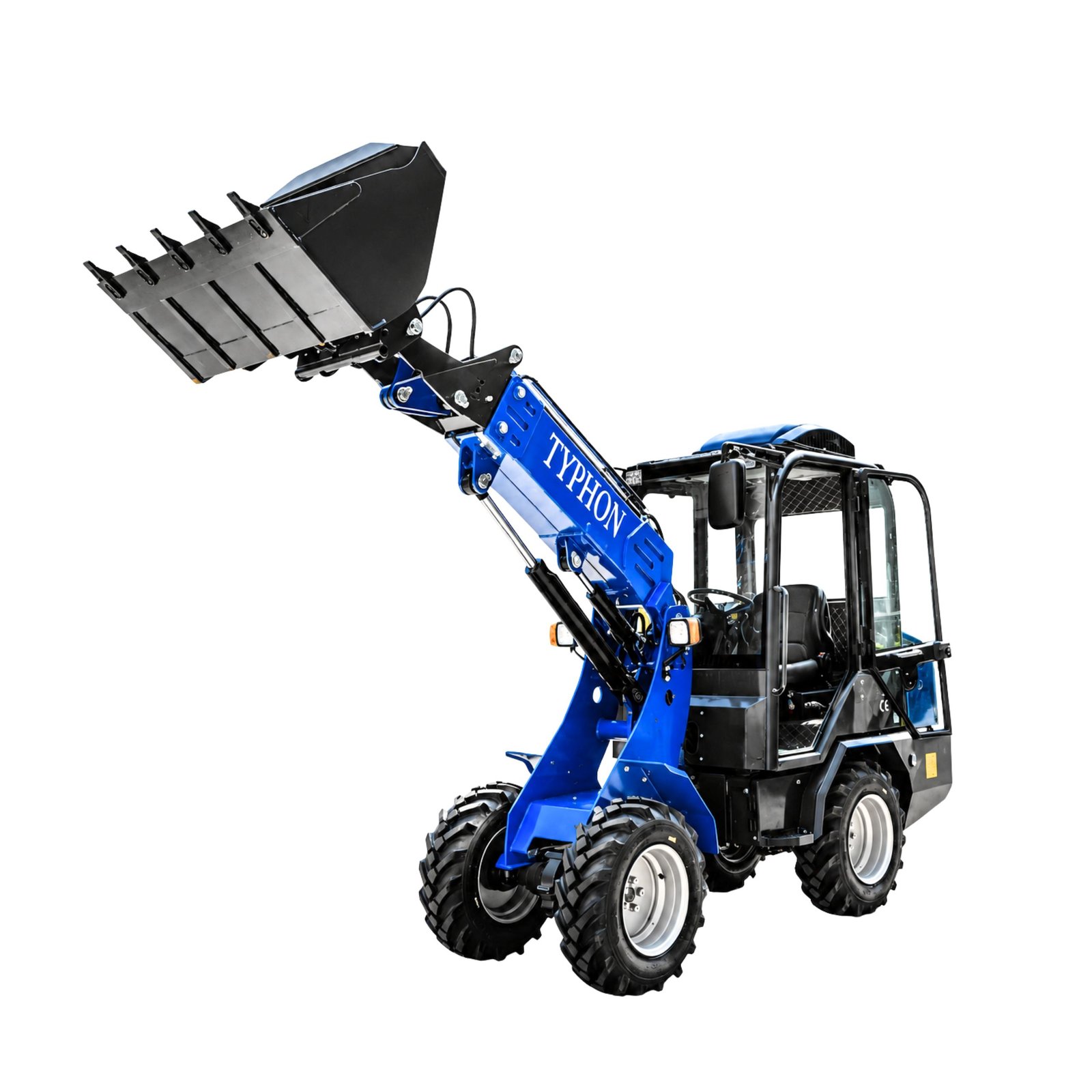

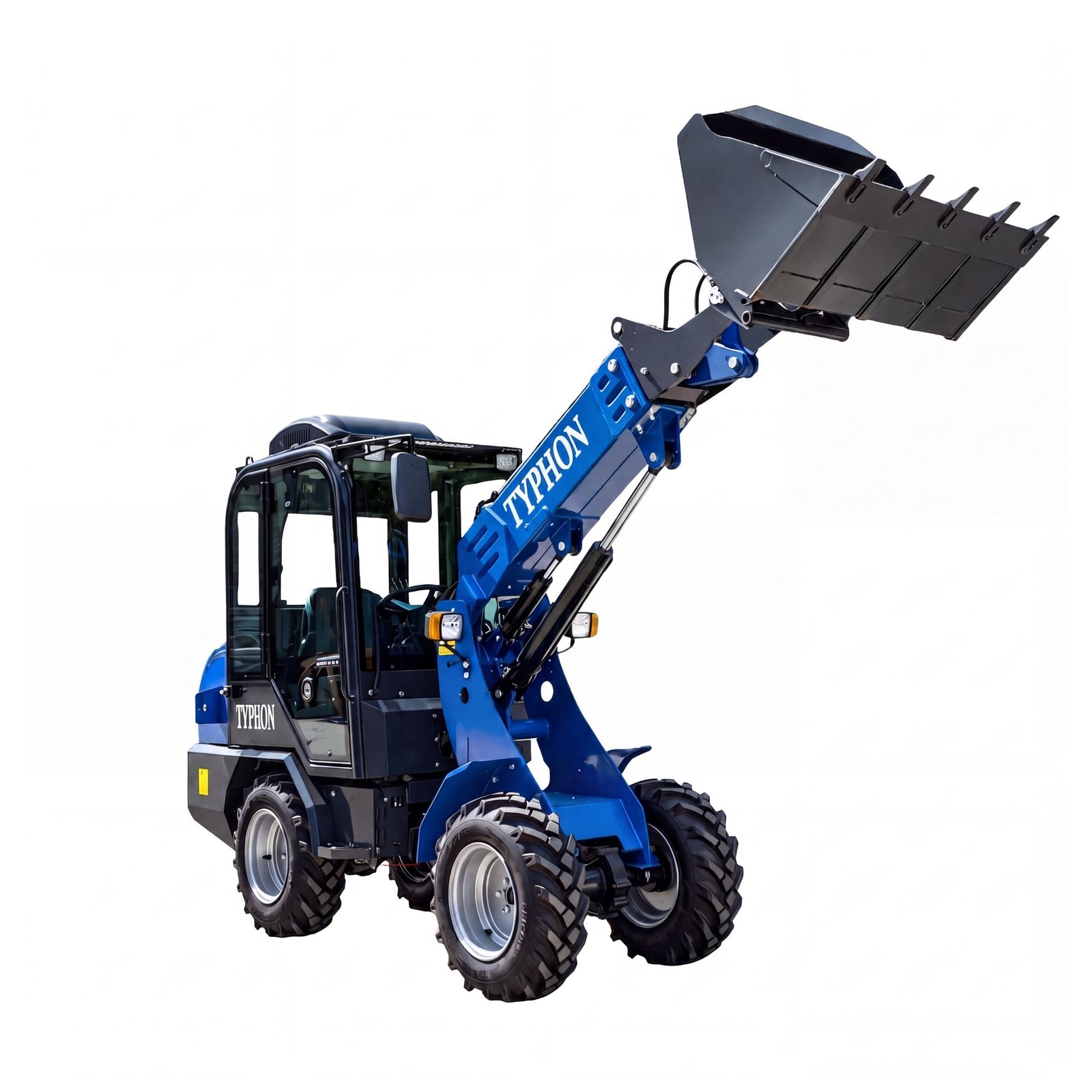

Loading and Unloading Performance

The SKOOP provides an 800 kg rated load capacity and 1,000 kg maximum load capacity, giving operators useful loading capability for a wide range of compact-loader applications.

The bucket provides a 2,200 mm (86.61 in) unloading height at the highest point, while the maximum bucket retraction height reaches3,605 mm (141.93 in). The machine also features a
35° unloading angle at the highest point, supporting efficient
material discharge.

The 518 mm (20.39 in) safe unloading distance provides additional clearance when unloading materials into designated areas or containers.

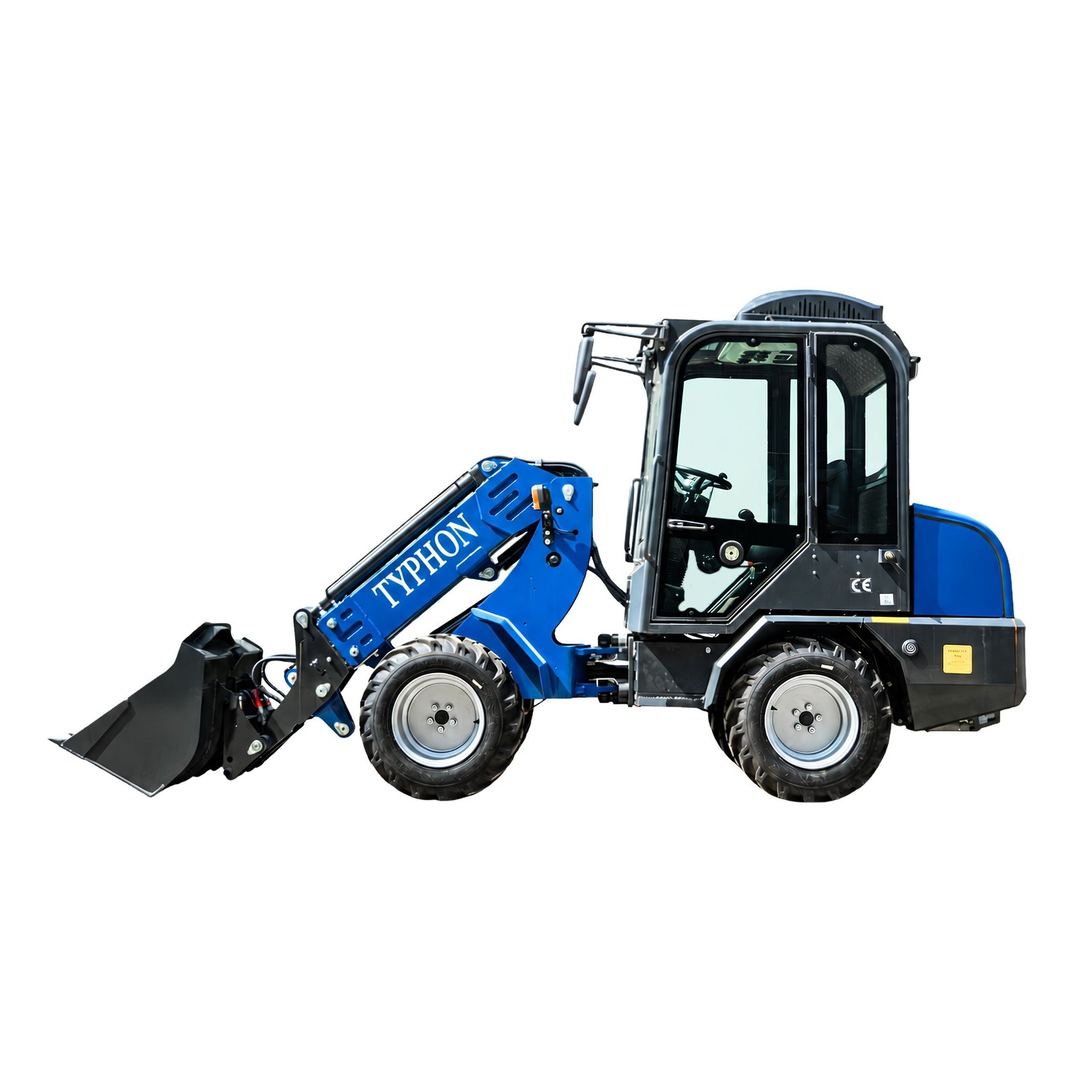

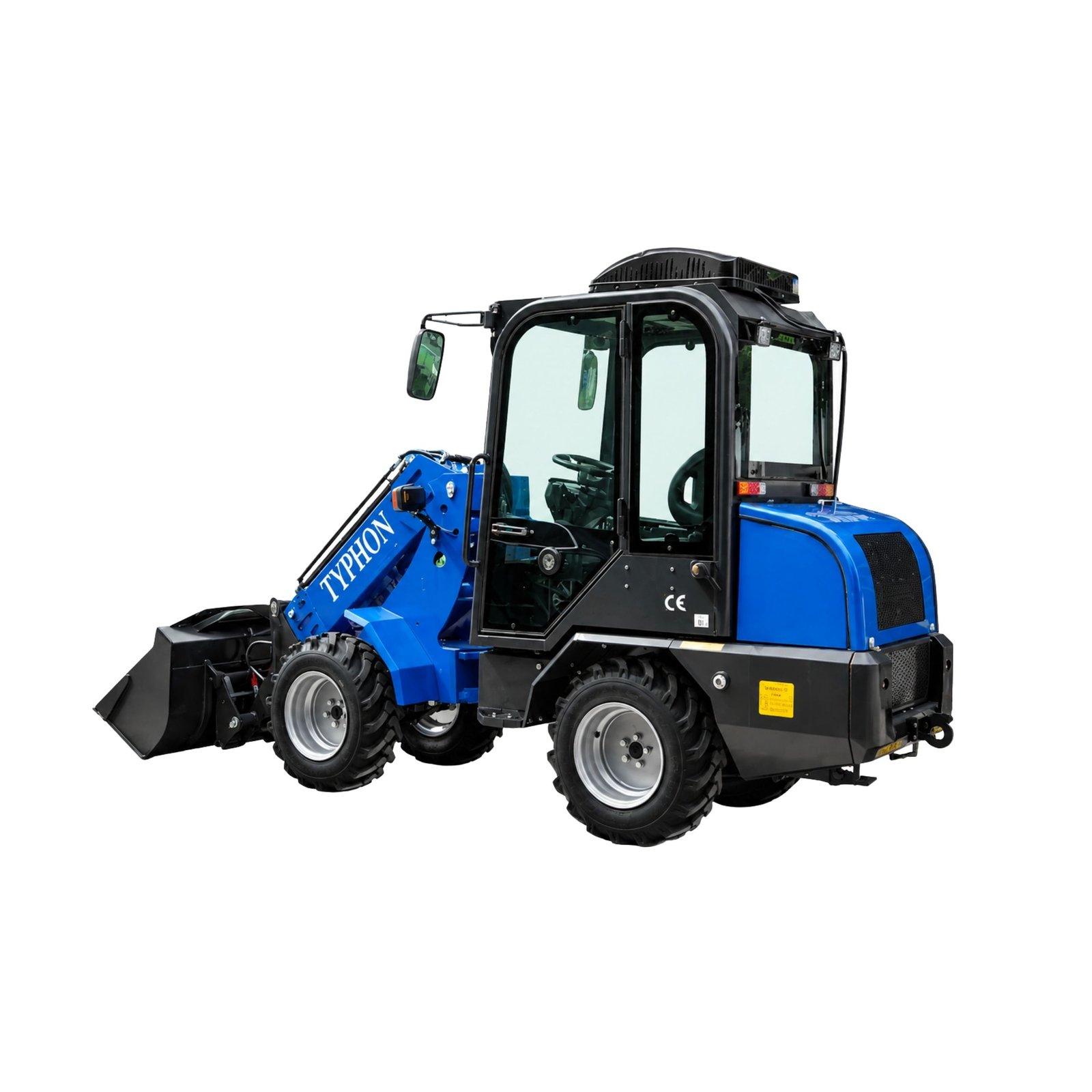

Enclosed Operator Cab

The TYPHON SKOOP features an enclosed operator cab designed to provide a more comfortable and controlled working environment during daily operation. The cab helps protect the operator from changing outdoor working conditions while providing improved comfort during extended loading and material-handling tasks.

The cab is equipped with air conditioning (AC) and a heater, helping maintain a comfortable operating environment in both hot and cold weather conditions.This makes the SKOOP suitable for operators who spend extended periods performing construction, agricultural, landscaping, road maintenance, and material-handling work.

• Enclosed operator cab
• Air conditioning (AC)
• Heater
• Improved operator comfort
• Protection from changing outdoor conditions
• Suitable for extended operating periods

Hydraulic System

The TYPHON SKOOP is equipped with a hydraulic system designed to support loader and
material-handling functions.

• 84 L/min (22.19 gpm) moving hydraulic flow
• 42 L/min (11.09 gpm) working hydraulic flow
• 40 L (10.57 gal) hydraulic oil tank capacity

The hydraulic system supports the machine’s loader functions and contributes to
smooth operation during material handling.

Compact Working Dimensions

The SKOOP is designed with a compact overall configuration for maneuverability in
restricted working environments.

The machine measures 4,274 mm (168.27 in) in total length and
1,320 mm (51.97 in) in total wheel width. Its
1,695 mm (66.73 in) wheel spacing and articulated design contribute
to its compact operating footprint.

The cab height is 2,350 mm (92.52 in), while the machine provides
120 mm (4.72 in) of digging depth for bucket-level ground engagement.

Fuel Capacity and Tires

The SKOOP is equipped with a 40 L (10.57 gal) diesel fuel tank,
providing practical fuel capacity for daily loading and material-handling operations.

Specified tire options include:

• 10.0/75-15.3
• 400/60-15.5

Applications

The TYPHON SKOOP Articulated Wheel Loader can be used for:

• Construction and building sites
• Agriculture and farm work
• Landscaping
• Road maintenance
• Property maintenance
• Material handling
• Soil and gravel handling
• Sand and bulk-material loading
• General site transportation

Its compact dimensions, articulated steering, front loader bucket, enclosed cab,
and practical load capacity make it suitable for operators who need a versatile
machine for everyday loading and transportation tasks.

Key Features

• 800 kg (1,764 lb) rated load capacity
• 1,000 kg (2,205 lb) maximum load capacity
• 0.3 m³ bucket capacity
• Kubota D1105 diesel engine
• 45° articulated turning angle
• 30% climbing gradient
• 12 km/h (7.46 mph) maximum travel speed
• 2,200 mm (86.61 in) maximum unloading height
• 3,605 mm (141.93 in) maximum bucket retraction height
• 242 mm (9.53 in) minimum ground clearance
• 84 L/min (22.19 gpm) moving hydraulic flow
• 42 L/min (11.09 gpm) working hydraulic flow
• 40 L (10.57 gal) hydraulic oil tank
• 40 L (10.57 gal) diesel fuel tank
• Enclosed operator cab
• Front loader bucket
• Compact articulated configuration

The TYPHON SKOOP Articulated Wheel Loader is designed to deliver
practical loading performance, maneuverability, and versatility for a wide range
of construction, agricultural, landscaping, road-maintenance, and material-handling
applications.
